How to Test Capacitor Health in Your Household Appliances

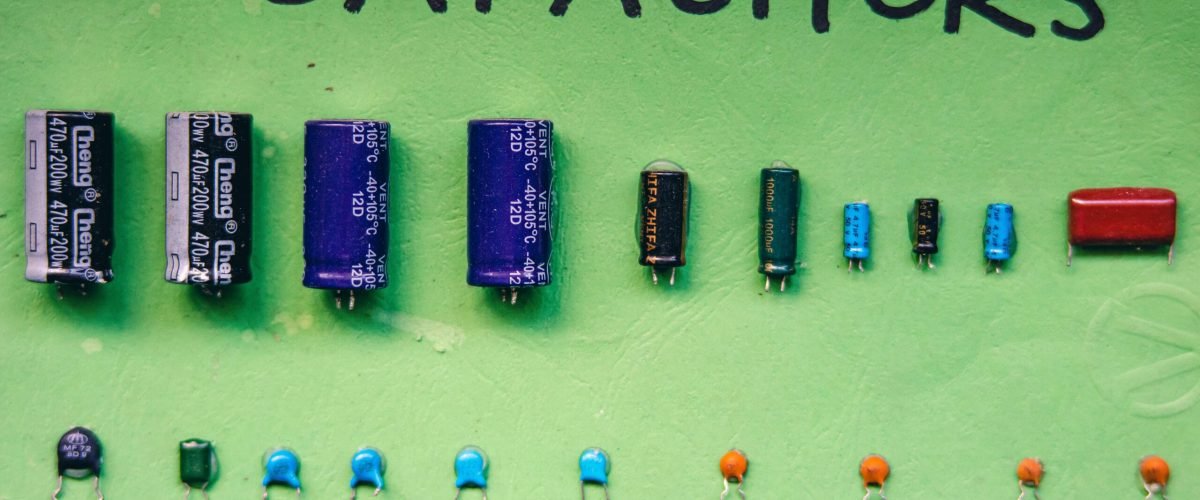

Capacitors are essential components in many household appliances, including microwaves, washing machines, and refrigerators. They store and release electrical energy, helping these appliances function properly. However, when a capacitor fails, it can cause your appliance to malfunction or stop working altogether. Knowing how to test a capacitor’s health can save you time and money by allowing you to diagnose and fix issues yourself. This guide will walk you through the process of testing capacitors in three common household appliances: microwaves, washers, and refrigerators.

Safety First: Preparing for the Test

Before testing any capacitor, it’s crucial to prioritize safety. Capacitors can hold a charge even after the appliance is turned off, so follow these steps:

Discharge the capacitor: Use a resistor or a capacitor discharge tool to safely discharge any stored energy. Simply bridging the capacitor terminals with a metal object can be dangerous, so avoid doing that.

Disconnect the appliance from the power source: Unplug the appliance to ensure no current is flowing.

Testing the Capacitor in a Microwave

Microwave capacitors play a key role in generating the high voltage needed to heat food. If your microwave isn’t working or making strange noises, the capacitor could be the issue.

Steps:

1. Locate the capacitor: Remove the outer casing of the microwave to find the capacitor, usually near the high-voltage transformer.
2. Disconnect the wires: Carefully detach the wires connected to the capacitor terminals.
3. Set your multimeter: Use an analog or digital multimeter and set it to the resistance (ohms) setting.
4. Test the capacitor: Place the multimeter leads on the capacitor terminals. A good capacitor will show a momentary deflection on the multimeter needle (analog) or a brief reading before settling at infinity (digital). If there’s no movement, the capacitor may be faulty.

Testing the Capacitor in a Washing Machine

In washing machines, capacitors are often used to start the motor or to keep it running smoothly. If your washer won’t start or struggles during the cycle, the capacitor might be the problem.

Steps:

1. Access the capacitor: Open the back panel of the washing machine to locate the motor capacitor, typically mounted near the motor.
2. Disconnect the capacitor: Unplug the wires connected to the capacitor terminals.
3. Set your multimeter: Again, set your multimeter to the resistance (ohms) setting.
4. Test the capacitor: Place the multimeter leads on the capacitor terminals. A functioning capacitor will show a quick spike in the reading, then drop back to infinity. No change in the reading indicates a potential issue.

Testing the Capacitor in a Refrigerator

Refrigerator capacitors help start the compressor, which is vital for cooling. If your fridge isn’t cooling properly, a faulty capacitor could be the cause.

Steps:

1. Locate the capacitor: Find the capacitor near the compressor at the back or bottom of the refrigerator.
2. Disconnect the wires: Carefully disconnect the wires from the capacitor terminals.
3. Set your multimeter: Use the resistance (ohms) setting on your multimeter.
4. Test the capacitor: Touch the multimeter leads to the capacitor terminals. A good capacitor will cause the multimeter to momentarily spike and then return to infinity. If the reading doesn’t change, the capacitor may need replacing.

Replacing a Faulty Capacitor

If any of the capacitors in your microwave, washing machine, or refrigerator fail the test, it’s likely time to replace them. Make sure to purchase a capacitor with the same voltage and capacitance rating as the original. Reinstallation involves connecting the new capacitor to the same terminals where the old one was attached.

Conclusion

Testing the health of capacitors in your household appliances is a straightforward task that can help you diagnose common issues. By following the steps outlined above, you can ensure that your microwave, washing machine, and refrigerator are operating efficiently. If you discover a faulty capacitor, replacing it is often a cost-effective solution that can extend the life of your appliance. Always remember to prioritize safety when working with electrical components, and when in doubt, consult a professional.
